library(phangorn)
options(width = 140)
# help(phangorn)
primates <- read.phyDat("primates.dna", format = "phylip") # from one the vignettes coming with pahangorn
class(primates)
## [1] "phyDat"
names(primates)
## [1] "Mouse" "Bovine" "Lemur" "Tarsier" "Squir Monk" "Jpn Macaq" "Rhesus Mac" "Crab-E.Mac" "BarbMacaq" "Gibbon"
## [11] "Orang" "Gorilla" "Chimp" "Human"
print(primates)
## 14 sequences with 232 character and 217 different site patterns.
## The states are a c g t
length(primates)
## [1] 14

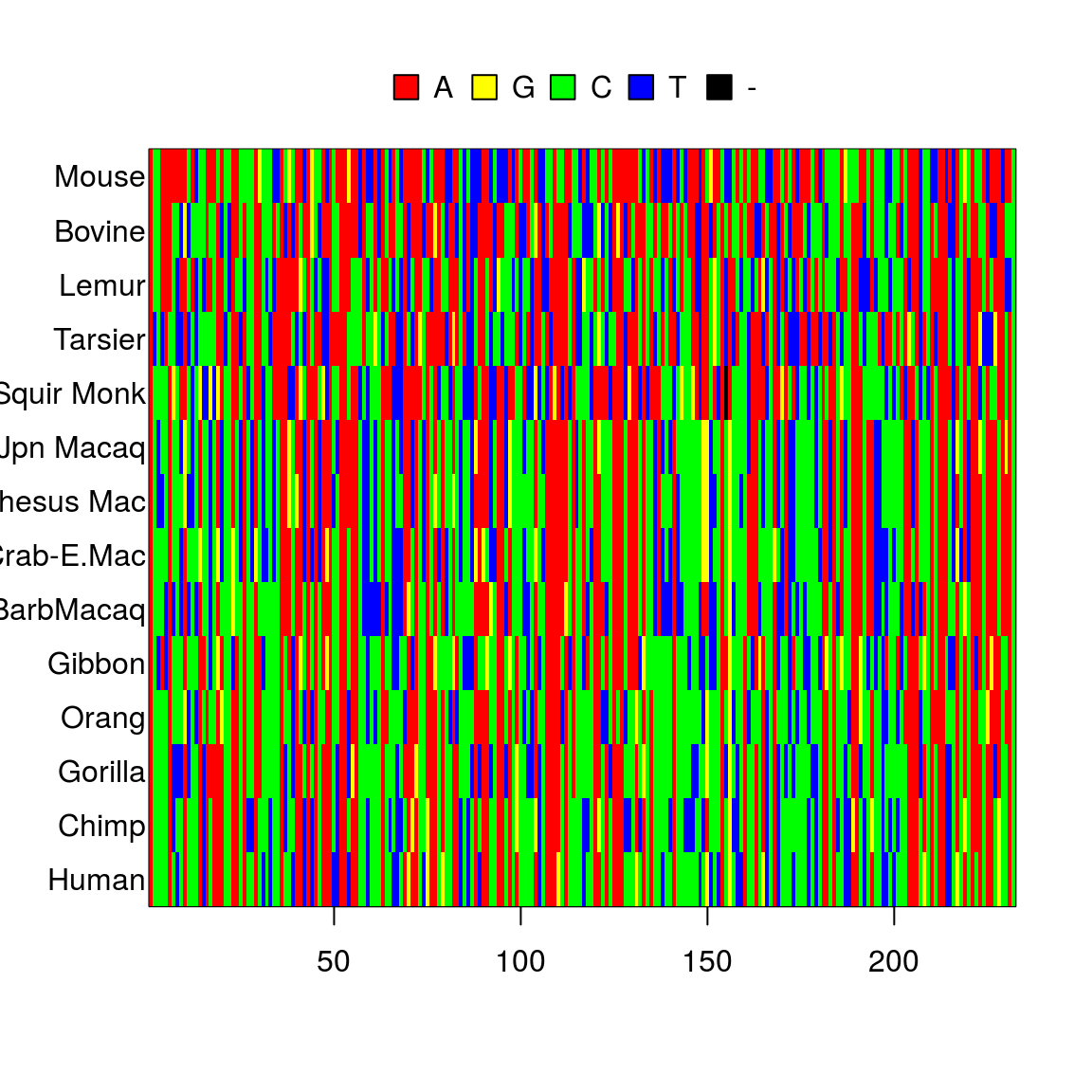

image(primates)
df <- as.data.frame(primates)
dim(df)
## [1] 232 14
head(df)
## Mouse Bovine Lemur Tarsier Squir Monk Jpn Macaq Rhesus Mac Crab-E.Mac BarbMacaq Gibbon Orang Gorilla Chimp Human
## 1 a a a a a a a a a a a a a a
## 2 c c c t c c c c c c c c c c
## 3 c c c c c t t c c t c c c c
## 4 a a a t c c t c c a c c c c
## 5 a a a a c c c c t t c c c c
## 6 a a a c a a a a a a a a a a
aln1 <- as.MultipleAlignment(primates)
class(aln1) # can be done a lot now using Biostrings library
## [1] "DNAMultipleAlignment"
## attr(,"package")
## [1] "Biostrings"
The functions ‘dist.hamming’, ‘dist.ml’ and ‘dist.logDet’ compute pairwise distances for an object of class ‘phyDat’. THe function ‘dist.ml’ uses DNA or AA sequences to compute distances under different substitution models.
distance <- dist.ml(primates)
class(distance)
## [1] "dist"
length(distance)
## [1] 91
14*13/2
## [1] 91
treeNJ = NJ(distance)
class(treeNJ)
## [1] "phylo"
print(treeNJ)
##
## Phylogenetic tree with 14 tips and 12 internal nodes.
##
## Tip labels:
## Mouse, Bovine, Lemur, Tarsier, Squir Monk, Jpn Macaq, ...
##
## Unrooted; includes branch lengths.
Nedge(treeNJ)
## [1] 25
Nnode(treeNJ)
## [1] 12

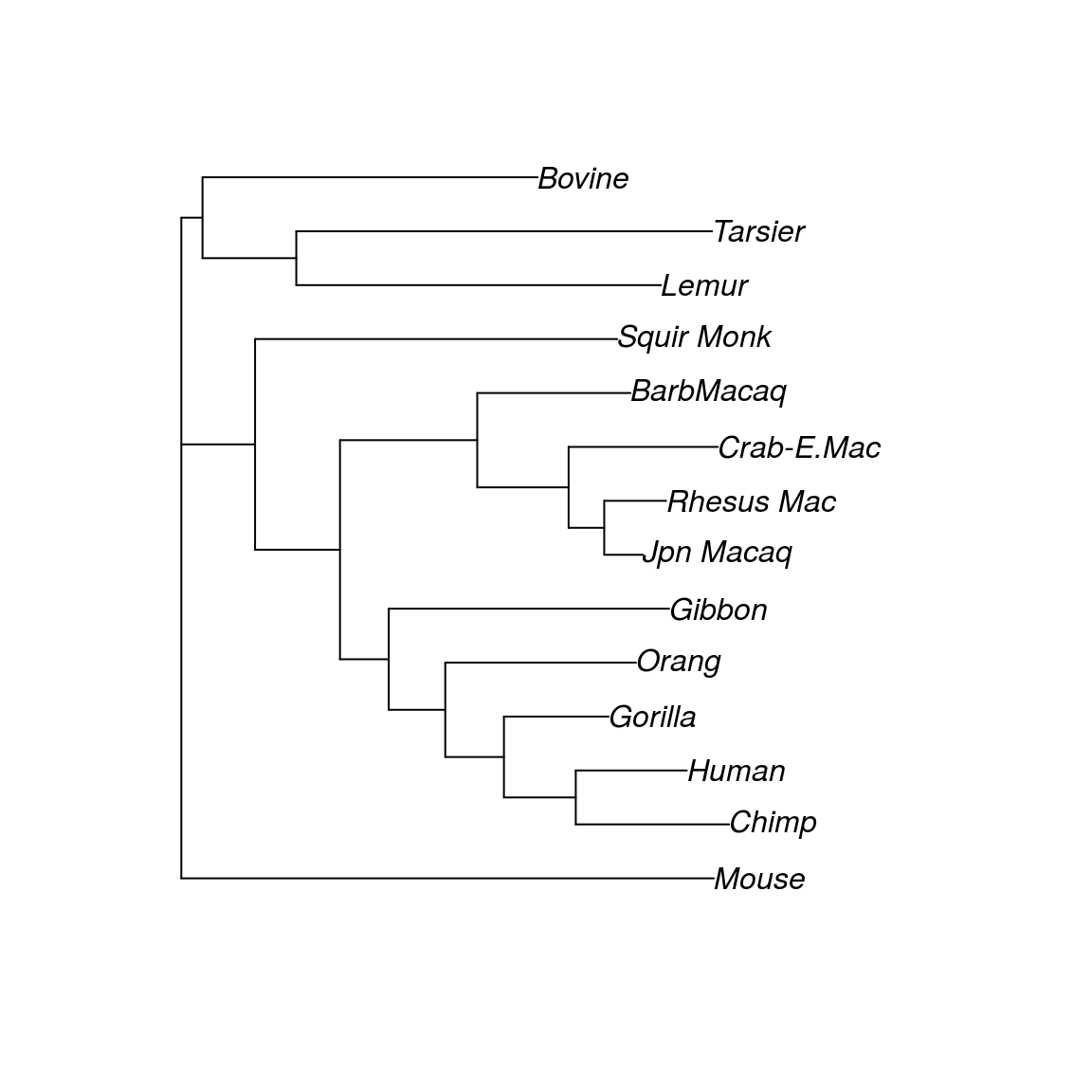

plot(treeNJ)

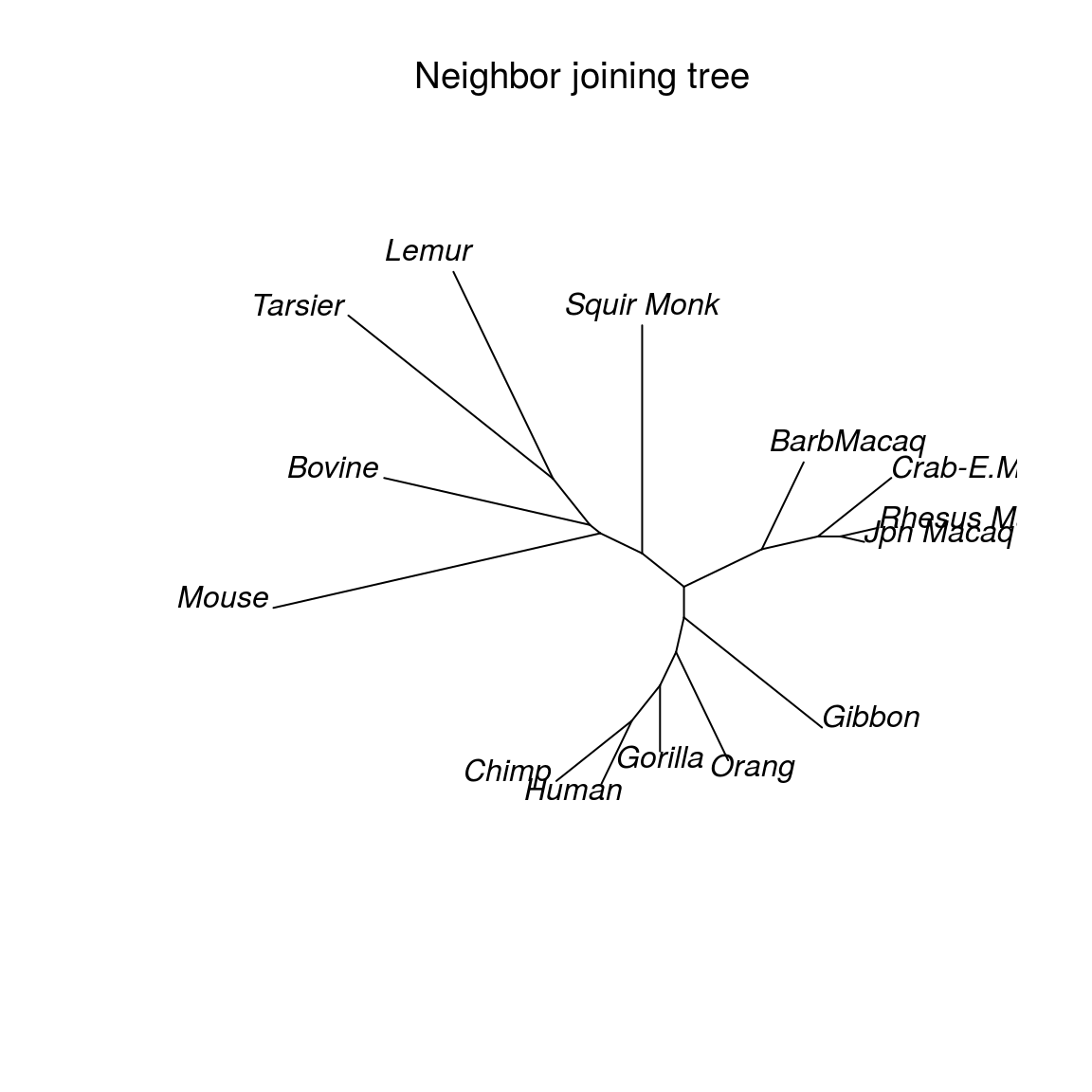

plot(treeNJ, "unrooted", main="Neighbor joining tree", font.main = 1)
treeUPGMA <- upgma(distance)

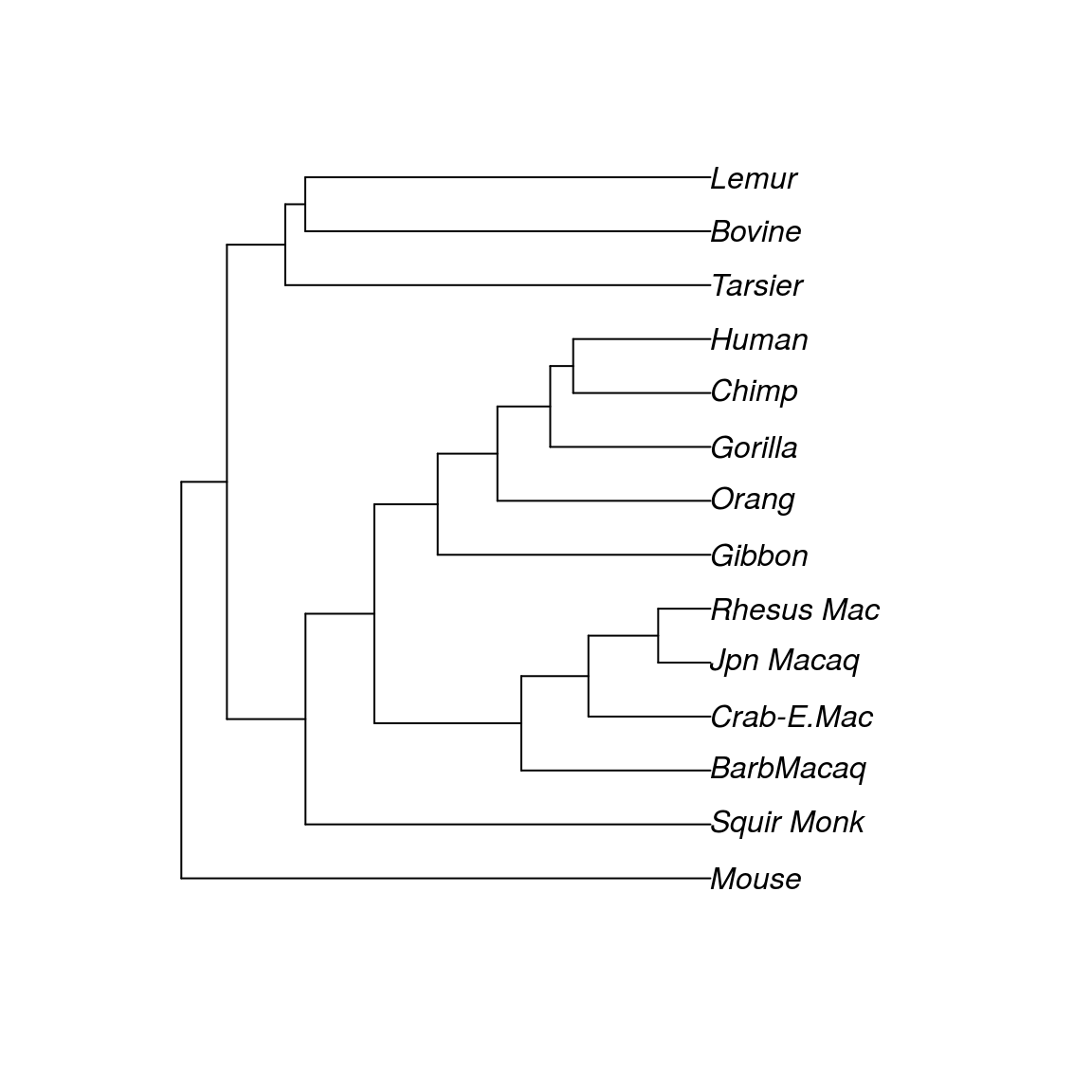

plot(treeUPGMA)
The best hypothesis is the one that requires the fewest evolutionary changes. The function parsimony
return the parsimony score for a given alignment.
parsimony(treeUPGMA, primates)
## [1] 751
fit <- pml(treeNJ, data = primates)
fit
##
## loglikelihood: -3074.952
##
## unconstrained loglikelihood: -1230.335
##
## Rate matrix:
## a c g t
## a 0 1 1 1
## c 1 0 1 1
## g 1 1 0 1
## t 1 1 1 0
##
## Base frequencies:
## 0.25 0.25 0.25 0.25
fitJC <- optim.pml(fit, TRUE)
## optimize edge weights: -3074.952 --> -3068.417
## optimize edge weights: -3068.417 --> -3068.417
## optimize topology: -3068.417 --> -3068.295
## optimize topology: -3068.295 --> -3068.295
## 1
## optimize edge weights: -3068.295 --> -3068.295
## optimize topology: -3068.295 --> -3068.295
## 0
## optimize edge weights: -3068.295 --> -3068.295
fitJC
##
## loglikelihood: -3068.295
##
## unconstrained loglikelihood: -1230.335
##
## Rate matrix:
## a c g t
## a 0 1 1 1
## c 1 0 1 1
## g 1 1 0 1
## t 1 1 1 0
##
## Base frequencies:
## 0.25 0.25 0.25 0.25
